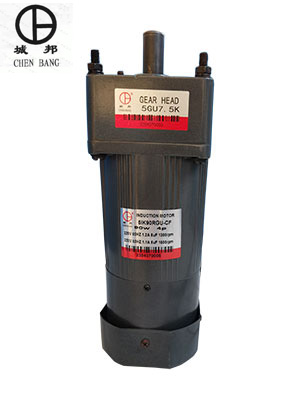

刹 車 馬 達
|
|
刹車馬達性能參數
|
機種
|
功率(W)
|
電壓(V)
|
起動轉矩(Kg.cm)
|
額定轉矩(Kg.cm)
|
額定電流(A)
|
額定轉速(rpm)
|
電容(μF)
|
適用減速機
|
|
|
圓軸
|
齒軸
|
|
|
3IK15A-AM
|
3IK15GN-AM
|
15
|
1φ110
|
0.9
|
1.1
|
0.4
|
1250
|
3.5
|
3GN□B
|
3GN□K
|
|
|
3IK15A-CM
|
3IK15GN-CM
|
15
|
1φ220
|
0.9
|
1.1
|
0.2
|
1250
|
1.2
|
3GN□B
|
3GN□K
|
|
|
4IK25A-AM
|
4IK25GN-AM
|
25
|
1φ110
|
1.5
|
1.56
|
0.58
|
1300
|
8
|
4GN□B
|
4GN□K
|
|
|
4IK25A-CM
|
4IK25GN-CM
|
25
|
1φ220
|
1.5
|
1.56
|
0.29
|
1300
|
1.5
|
4GN□B
|
4GN□K
|
|
|
4IK25A-SM
|
4IK25GN-SM
|
25
|
3φ220
|
4.1
|
1.56
|
0.2
|
1300
|
-
|
4GN□B
|
4GN□K
|
|
|
5IK40A-AM
|
5IK40GN-AM
|
40
|
1φ110
|
2.25
|
2.4
|
0.78
|
1300
|
12
|
-
|
5GN□K
|
|
|
5IK40A-CM
|
5IK40GN-CM
|
40
|
1φ220
|
2.25
|
2.4
|
0.25
|
1300
|
2.5
|
-
|
5GN□K
|
|
|
5IK40A-SM
|
5IK40GN-SM
|
40
|
3φ220
|
6.5
|
2.6
|
0.31
|
1300
|
-
|
-
|
5GN□K
|
|
|
5IK60A-AM
|
5IK60GN-AM
|
60
|
1φ110
|
3.5
|
3.8
|
1.4
|
1300
|
16
|
-
|
5GN□K
|
|
|
5IK60A-CM
|
5IK60GN-CM
|
60
|
1φ220
|
3.5
|
3.8
|
0.7
|
1300
|
3.5
|
-
|
5GN□K
|
|
|
5IK60A-SM
|
5IK60GN-SM
|
60
|
3φ220
|
5.5
|
4
|
0.6
|
1300
|
-
|
-
|
5GN□K
|
|
|
5IK90A-AM
|
5IK90GU-AM
|
90
|
1φ110
|
4.5
|
5.25
|
1.8
|
1300
|
20
|
-
|
5GU□K
|
|
|
5IK90A-CM
|
5IK90GU-CM
|
90
|
1φ220
|
4.5
|
5.25
|
0.9
|
1300
|
5
|
-
|
5GU□K
|
|
|
5IK90A-SM
|
5IK90GU-SM
|
90
|
3φ220
|
12
|
5.25
|
0.8
|
1300
|
-
|
-
|
5GU□K
|
|
|
|
注：頻率（Hz）50,極數（P）4，額定時間（min）30
|
|
電磁刹車特點
|
刹車力矩
|
1、 能實現快速刹車
2、 有足夠的刹車力矩
|
|
功率
|
15
|
25
|
40
|
60
|
90
|
|
|
制動力矩
|
2
|
2
|
3
|
5
|
7
|
|
|
|
|
電磁刹車馬達外形尺寸
|
刹車馬達連接線圖
|
|
|
|
|
功率
|
15
|
25
|
40
|
60
|
90
|
|
長度
|
127
|
139
|
165
|
165
|
180
|
|
